Atrix Max
16L-PK
16kWh Residential Battery
Power Through
Every Outage.
Atrix Max battery stores electricity for your home or office, so your lights and important appliances keep running when the grid goes down.
Get the Highlights
16kWh of Usable Power
Use 100% of the battery
Expand Up to 512kWh
Connect up to 32 units
~27 Years Daily Cycling
10,000 lifecycles
Track in Real Time
From the app or web
Built-in Wi-Fi
Stay connected easily

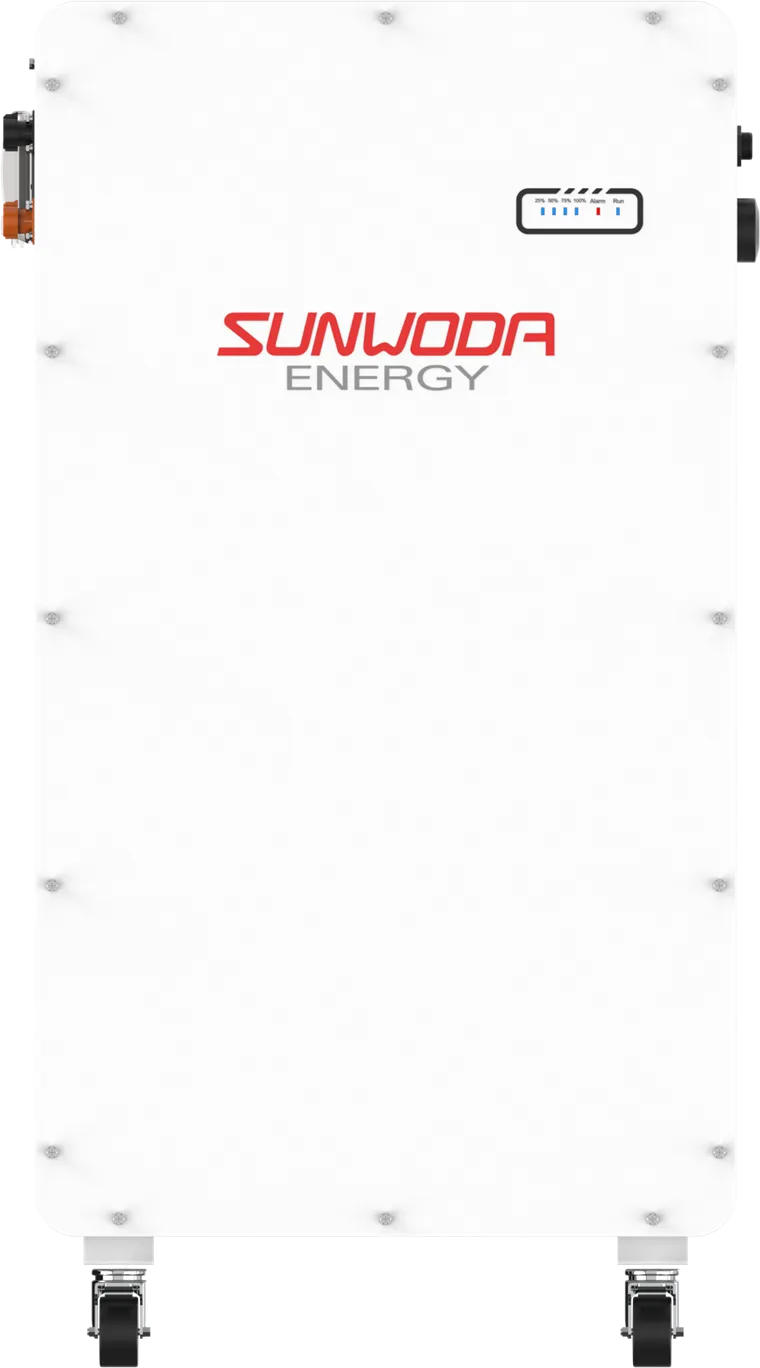

All 16kWh. All available.
Atrix Max provides 16kWh of nominal and usable energy, allowing the system to make full use of its available storage capacity.
kWh
Start with 1.
Scale up to 32.
Connect up to 32 Atrix Max batteries in parallel, scaling your storage from 16kWh to 512kWh as your residential or commercial energy needs grow.
Scalable energy storage
Smart Load Balancing
Residential & Commercial
Power that performs
Everyday Power
Reliable performance for daily energy needs.
157A Rated
Heavy Loads
Handles higher demand when more appliances run.
220A Maximum
5-Minute Boost
Extra power for short periods of peak demand.
300A Peak
Built for the long run.
~27
Years
of Daily Cycling
With 10,000 life cycles, Atrix Max is designed to keep delivering reliable energy for years of everyday use.
10,000
Life Cycles
Day 1
Ready for everyday use.
Around 13 Years
About 5,000 daily cycles.
Around 27 Years
Nearly 10,000 daily cycles.
Smart & Connected
Real-time monitoring, anytime, anywhere.
Track performance, energy flow and system status in real time with our intuitive dashboard and mobile app.
Live Monitoring
See what’s happening
App & Web Access
Check from anywhere
Built-in Wi-Fi
Stay connected easily
%201.webp)
Designed for
easy installation
Floor-mounted
Standard installation
Integrated Casters
Easy to move & position
Wall-mounted (Optional)
Space-saving flexibility
Indoor or Outdoor Use
Built for any environment
Dimensions (W×H×D)
500 × 970 × 265 mm
Weight
130 kg
Safe. Certified. Reliable.
IEC62619
Certified
CE
Compliant
UN38.3
Certified
Natural Convection
Cooling
Operating Temperature
-20°C to 55°C (Discharge)
0°C to 55°C (Charge)
0°C to 55°C (Charge)
Technical specs at a glance
Specification
Value
Nominal / Usable Energy
16kWh / 16kWh (100% DOD)
Rated Voltage
51.2V
Rated Charge/Discharge Current
157A / 157A
Max Charge/Discharge Current
220A / 220A
Peak Output Current (5 min)
300A
Scalability
Max. 32 in Parallel, Max. 512kWh
Communication
CAN 2.0 / RS485
Wi-Fi Module
Integrated
Installation
Floor-Mounted, Wall-Mounted (Optional)
Cooling
Natural Convection
7-Year Warranty
6+1 years with internet connection
Expert Support
When you need it
Quality Assured
Built to the highest standards
Atrix Max 16L-PK
Power that
stays when the
grid doesn’t
Reliable home backup with smart monitoring and room to grow with your energy needs.
