Elecra

3–6.2kW · Hybrid · Single Phase

More solar.
More control.

A flexible hybrid inverter that brings solar, battery and grid power together for smarter, more reliable energy management.

Get a Quote

Download Datasheet

Get the Highlights

3–6.2kW
Range

Choose the power level
that fits your needs

Battery
Optional

Works with or without
battery storage

Up to 8,000W
PV Input

Make better use of
available solar power

Up to 120A
Charging

Faster charging from
solar or the grid

Built-in
Wi-Fi

Check system performance
through the app

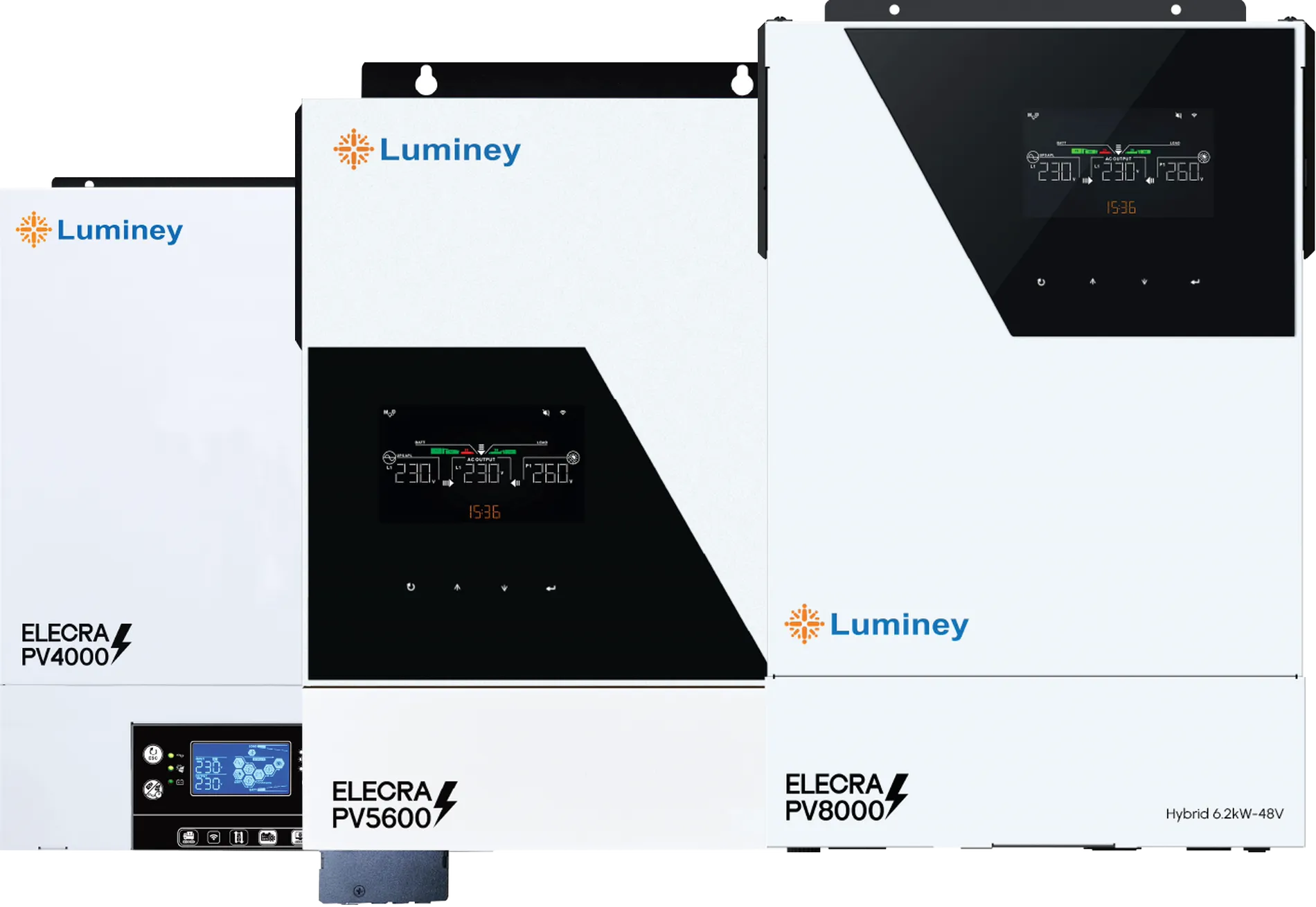

Three power options. One flexible platform.

Elecra is available in three configurations, helping homeowners choose the inverter output, battery voltage and PV capacity that suit their energy requirements.

kWh

Elecra PV4000

kWh

Elecra PV5600

kWh

Elecra PV8000

Built to capture more solar.

Elecra supports high-voltage PV input and a broad MPPT operating range to make effective use of solar generation throughout the day.

Luminey Elecra inverters capturing solar across a full day

Clean power for
everyday loads.

220–240V

Steady Power

Clean, consistent power for everyday devices.

93%

Less Energy Loss

More stored energy gets used effectively.

10–20ms

Quick Switching

Changes power source fast with minimal interruption.

Prioritise what matters.

Elecra PV5600 and PV8000 include dual outputs to help separate essential loads from heavier or lower-priority equipment.

Smart Loads

For essential appliances and critical devices.

Heavy Loads

For equipment with greater power demand.

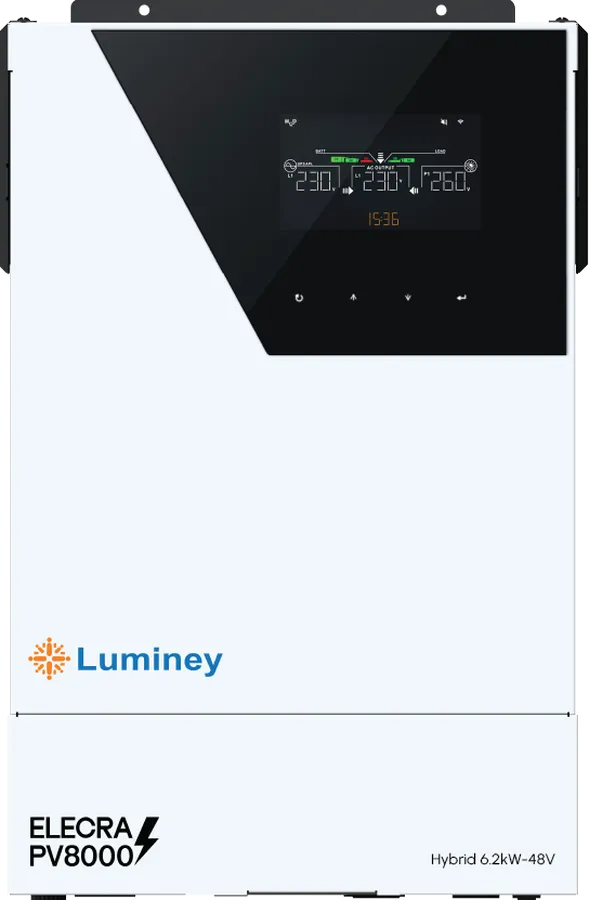

Luminey Elecra PV8000 hybrid inverter with dual outputs

Smart & Connected

Your energy, always in view.

Built-in Wi-Fi and multiple communication interfaces help keep system operation and performance accessible.

LAN

RS485

Wi-Fi
Built-in

Luminey monitoring app showing live Elecra system data

Atrix Max 16L-PK floor-mounted battery with integrated casters

Designed for
commercial installation.

Wall-Mounted

Compact installation

Single Phase

Designed for Residential

Built-in Communication

Wi-Fi and wired interfaces

Anti-Dust Support

External filter available

Model

Dimensions (W×H×D)

Weight

PV4000

115 × 300 × 400mm

9kg

PV5600

119 × 313.6 × 457.5mm

10kg

PV8000

140 × 295 × 468mm

12kg

Smart. Safe. Reliable.

Short-Circuit
Protection

Protects during
electrical faults.

Overcharge
Protection

Controls battery
charging limits.

Built-in BMS

Connects with
compatible batteries.

Circuit
Breaker

Built into PV5600.

Zero
Export

Available on
PV8000.

Technical specs at a glance

Specification

PV4000

PV5600

PV8000

Rated Output

3kW

4kW

6.2kW

Battery Voltage

24V

48V

Maximum PV Input

4,000W

5,600W

8,000W

Maximum PV Voltage

500VDC

MPPT Range

120–450VDC

60–450VDC*

120–430VDC

Maximum Solar Charging

100A

120A

Maximum AC Charging

100A

120A

Output Waveform

Pure sine wave

Communication

USB / RS232 / RS485 / Wi-Fi

Parallel Capability

Up to 9 units

View full specifications

12-Year Coverage

18-month replacement warranty plus 10.5-year service warranty

Expert Support

When you need it

Quality Assured

Built to the highest standards

Home at dusk powered by a Luminey Elecra hybrid inverter

Power that works your way

Take control of every energy source.

Solar, battery and grid power working together. Elecra keeps your home prepared through every part of the day.
