Luminey G2 Pro three-phase on-grid solar inverter

G2 Pro

10–20kW · On-Grid · Three Phase · IP66

Get more from your solar every day.

A high-efficiency solar inverter designed to turn more sunlight into usable energy, support larger solar setups, and keep performance steady throughout the day.

Download Datasheet

Download Datasheet

Get the Highlights

10, 15 and
20kW Models

Choose the output
your project needs

150% PV
Oversizing

Capture more energy in
lower sunlight

Up to 98.6%
Efficiency

Convert more available
solar energy

ShadeSol
Management

Optimised output under
partial shading

IP66
Protection

Built for demanding
outdoor conditions

Three outputs. One efficient platform.

G2 Pro is available in three power ratings, helping commercial and larger residential solar systems select the right inverter capacity.

10

kWh

G2 Pro 10K

15

kWh

G2 Pro 15K

20

kWh

G2 Pro 20K

More panels. More potential.

G2 Pro supports PV arrays up to 150% of the inverter's rated output, helping solar systems capture more energy during mornings, evenings and periods of lower sunlight.

Performance that
wastes less.

98.6%

High Efficiency

Turns more solar energy into usable power. 150% PV

More Solar Capacity

Supports a larger solar panel setup

1W

Low Night Use

Uses very little power after sunset

Designed to find the sunlight.

ShadeSol management helps the inverter optimise energy production when parts of the solar array experience temporary or uneven shading.

Keeps Power Up in Shade

Balances Power Across Panel Groups

Finds the Best Available Sunlight

Smart & Connected

Solar performance,
always visible.

Monitor inverter operation and system performance through flexible wired and wireless communication options.

Luminey monitoring app showing live Atrix Max system data

Atrix Max 16L-PK floor-mounted battery with integrated casters

Designed for
straightforward installation.

Wall-Mounted

Compact installation

LED Status Indicators

Communication feedback

Plug-in AC Connector

Faster system setup

Plug-in DC Connectors

Simplified solar connections

Model

Weight

10kW

Below 17.3kg

15kW

17.3kg

20kW

18.6kg

Dimensions (W×H×D)

503 × 435 × 183mm

Safe. Certified. Reliable.

IEC62619 certified

IEC 62109

Inverter safety
certification

IEC 62116

Anti-islanding
compliance

UN38.3 certified

IEC 61727

Utility interface
requirements

EN 50549

Grid-connection
compliance

CE

European
conformity

Technical specs at a glance

Specification

Value

Available Models

10kW, 15kW and 20kW

Maximum PV Array Power

15kWp, 22.5kWp or 30kWp

Maximum Input Voltage

1100V

MPPT Voltage Range

150–1000V

Rated Input Voltage

630V

Maximum Efficiency

98.6%

European Efficiency

98.2%

Grid Connection

Three phase

Communication

RS485 with Wi-Fi, LAN or 4G options

Protection Rating

IP66

View full specifications

View full specifications

5-Year Warranty

subject to Luminey's published terms and conditions

Expert Support

When you need it

Quality Assured

Built to the highest standards

Commercial rooftop solar array at sunset powered by a Luminey G2 Pro inverter

Make every ray count

Turn more sunlight into usable energy.

High efficiency. Intelligent shade management. G2 Pro is built to get more from your solar system.

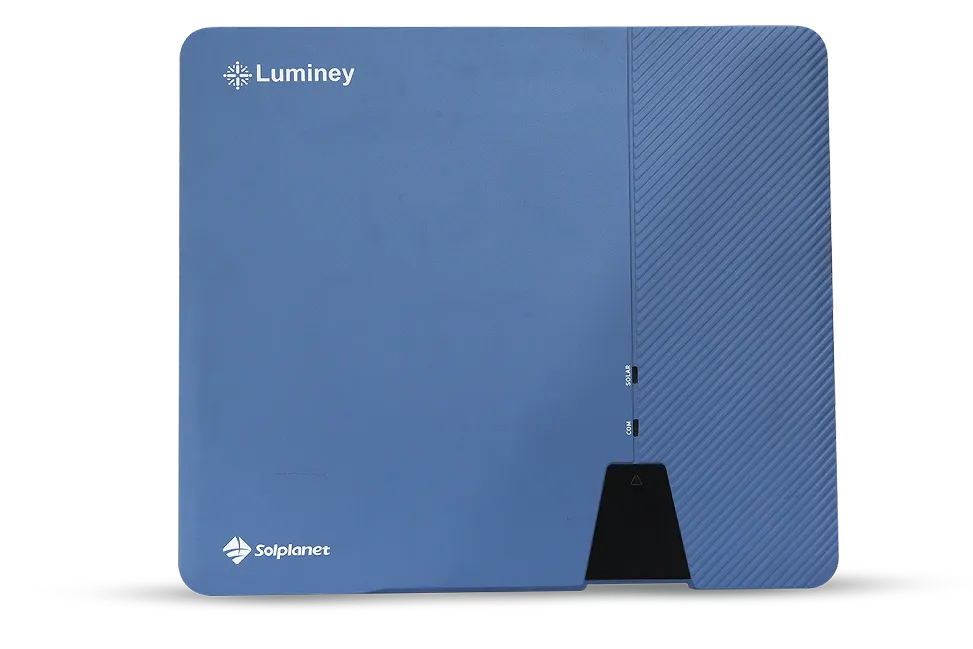

Luminey G2 Pro solar inverter
