Luminey G3 three-phase on-grid solar inverters, 30 to 50kW

G3

30–50kW · On-Grid · Three Phase · IP66

Commercial solar. Powered further.

A high-performance three-phase on-grid inverter designed for larger solar installations, efficient energy conversion and intelligent generation management.

Download Datasheet

Download Datasheet

Get the Highlights

30, 40 and
50kW Models

Built for larger solar
installations

150% PV
Oversizing

Capture more energy in
lower sunlight

Up to 98.6%
Efficiency

Convert more available
solar energy

ShadeSol
Management

Optimised output under
partial shading

IP66
Protection

Reliable outdoor
operation

Three outputs. One efficient platform.

G3 is available in three output ratings, allowing commercial and industrial solar projects to select the capacity that matches their generation requirements.

30

kWh

Luminey G3 30K three-phase on-grid solar inverter

G3 30K

40

kWh

Luminey G3 40K three-phase on-grid solar inverter

G3 40K

50

kWh

Luminey G3 50K three-phase on-grid solar inverter

G3 50K

More panels. Greater output potential.

G3 supports PV arrays up to 150% of the inverter's rated output, helping larger solar installations generate more energy across mornings, evenings and lower-sunlight conditions.

Luminey G3 inverters generating across a full day of sunlight

Performance at
commercial scale.

98.6%

High Efficiency

Turns more solar energy into usable power. 150% PV

More Solar Capacity

Supports a larger solar panel setup

1W

Low Night Use

Uses very little power after sunset

Designed to find the sunlight.

ShadeSol management helps maximise solar generation when temporary or uneven shading affects parts of the array.

Keeps Power Up in Shade

Balances Power Across Panel Groups

Finds the Best Available Sunlight

Smart & Connected

Your solar system, always visible.

Monitor inverter operation and system performance through flexible wired and wireless communication options.

LAN

RS485

Wi-Fi
Built-in

Luminey monitoring app showing live G3 solar system data

Atrix Max 16L-PK floor-mounted battery with integrated casters

Designed for
commercial installation.

Wall-Mounted

Compact installation

LED Status Indicators

Communication feedback

Plug-in AC Connector

Faster system setup

Plug-in DC Connectors

Simplified solar connections

Model

Dimensions (W×H×D)

Weight

G3 30K

543 × 520 × 235mm

29kg

G3 40K

543 × 520 × 235mm

30kg

G3 50K

670 × 640 × 270mm

43kg

Safe. Certified. Reliable.

IEC62619 certified

IEC 62109

Inverter safety
certification

IEC 62116

Anti-islanding
compliance

UN38.3 certified

IEC 61727

Utility interface
requirements

EN 50549

Grid-connection
compliance

CE

European
conformity

Technical specs at a glance

Specification

Value

Available Models

30kW, 40kW and 50kW

Maximum PV Array Power

45kWp, 60kWp or 75kWp

Maximum Input Voltage

1100V

MPPT Voltage Range

180–1000V or 200–1000V

Rated Input Voltage

630V

Independent MPPTs

3 on 30/40kW, 5 on 50kW

Maximum Efficiency

98.6%

Grid Connection

Three phase

Communication

RS485 with Wi-Fi, LAN or 4G options

Protection Rating

IP66

View full specifications

View full specifications

5-Year Warranty

subject to Luminey's published terms and conditions

Expert Support

When you need it

Quality Assured

Built to the highest standards

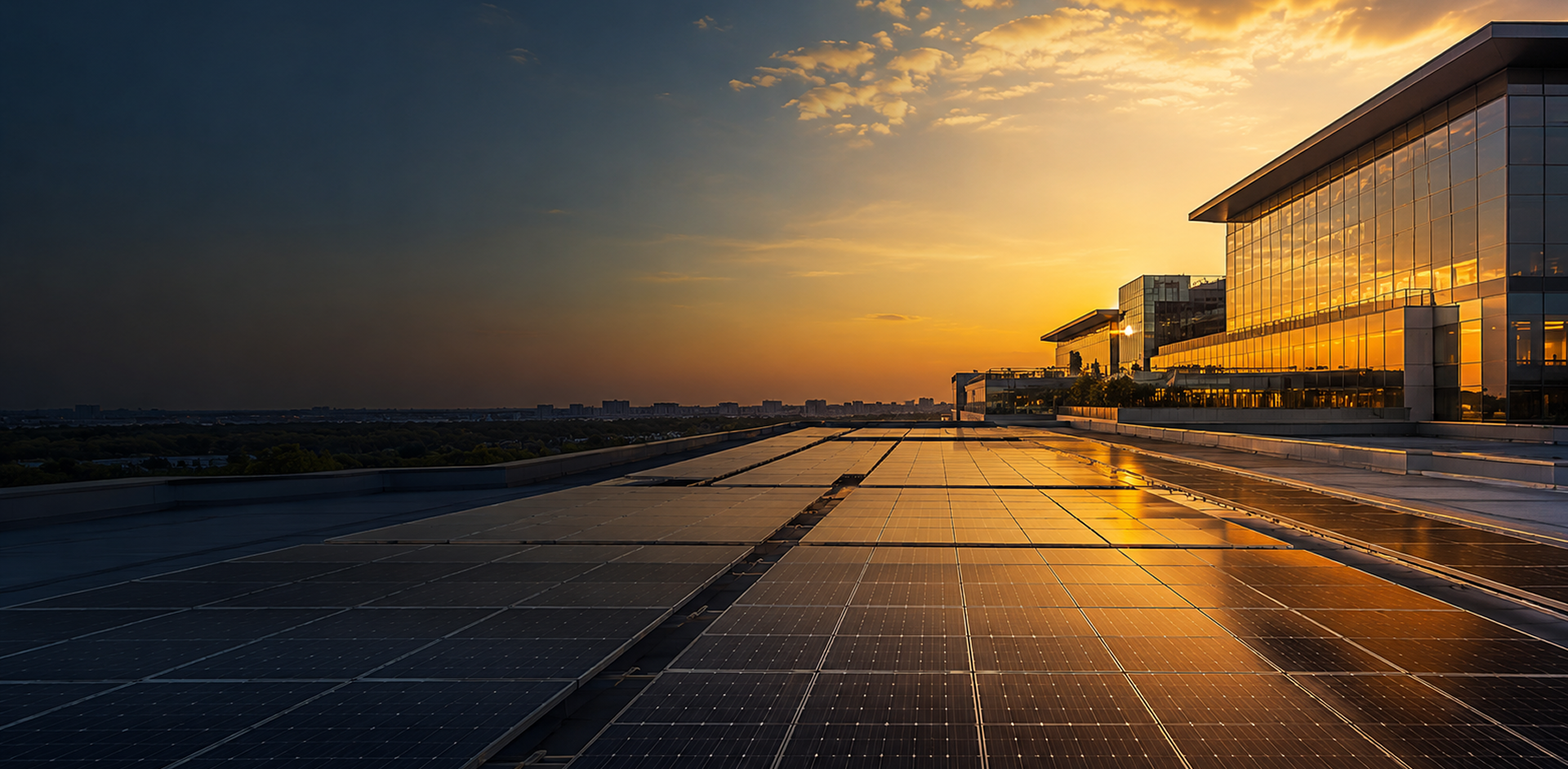

Commercial rooftop solar array at sunset powered by a Luminey G3 inverter

Make every ray count

Turn commercial rooftops into powerful energy assets.

High efficiency. Intelligent shade management. G3 is built to get more from your solar system.

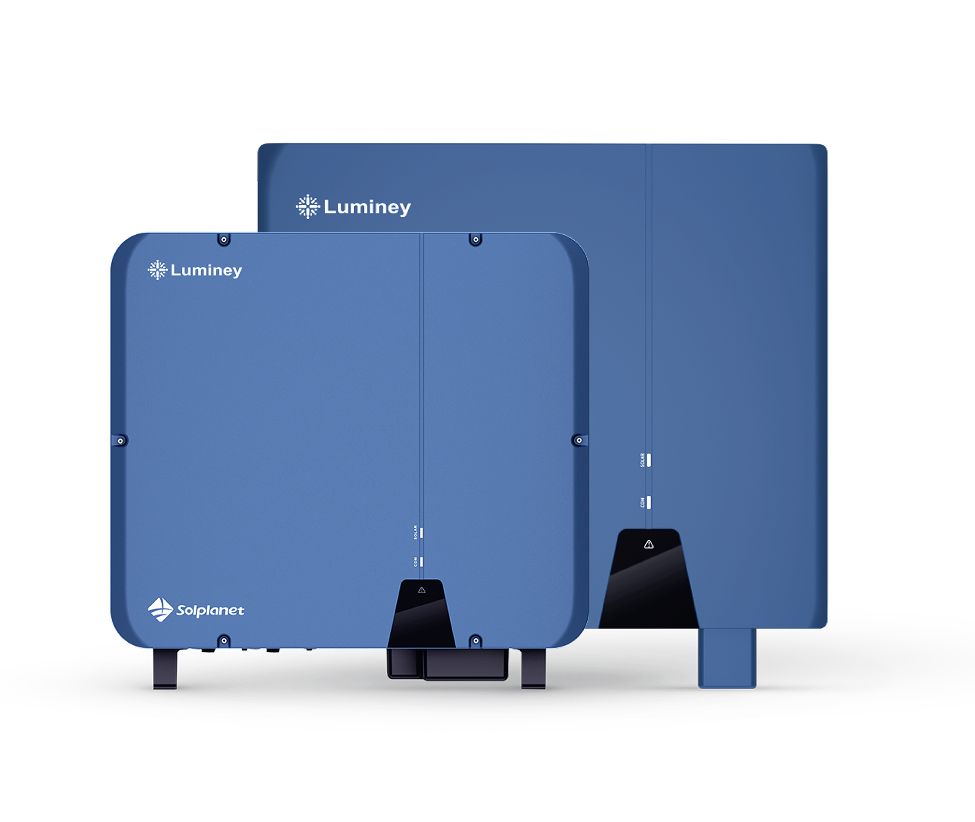

Luminey G3 commercial solar inverters
