Monawall
LV 5–80kWh · IP65
Power that fits right
into your space.
Compact wall-mounted battery for reliable everyday backup, indoors or outdoors.
Get the Highlights
5kWh Full Usable Energy
100% available capacity
Expandable to 80kWh
Connect up to 16 batteries
~16 Years Daily Cycling
6,000 life cycles
Fast Power Delivery
Handles Higher Demand Up to 100A output
Built-in Wi-Fi
Monitor From Anywhere Stay connected easily
All 5kWh. All available.
Monawall provides 5kWh of nominal and usable energy with 100% depth of discharge, allowing you to make full use of the energy stored inside.
kWh
Start with 1.
Scale up to 16.
Connect up to 16 Monawall batteries, growing your storage from 5kWh to 80kWh as your energy needs increase.
Flexible Energy Storage
Smart System Expansion
Home & Business Ready
Power that performs
Everyday Power
Reliable performance for normal daily use.
50A Rated
Higher Demand
Extra power when your energy needs increase.
100A Maximum
Less Energy Lost
Over 98% efficiency from charge to discharge.
>98% Roundtrip Efficiency
Built for years of everyday use.
~16
Years
of Daily Cycling
With 6,000 cycles, Monawall is designed for dependable daily use year after year.
Day 1
Ready for everyday use.
Around 8 Years*
About 3,000 daily cycles.
Around 16 Years*
Nearly 6,000 daily cycles.
Smart & Connected
Your energy,
always connected.
Integrated Wi-Fi keeps Monawall connected, while CAN 2.0 and RS485 support communication with compatible system components.
Live Monitoring
See what’s happening
App & Web Access
Check from anywhere
Built-in Wi-Fi
Stay connected easily

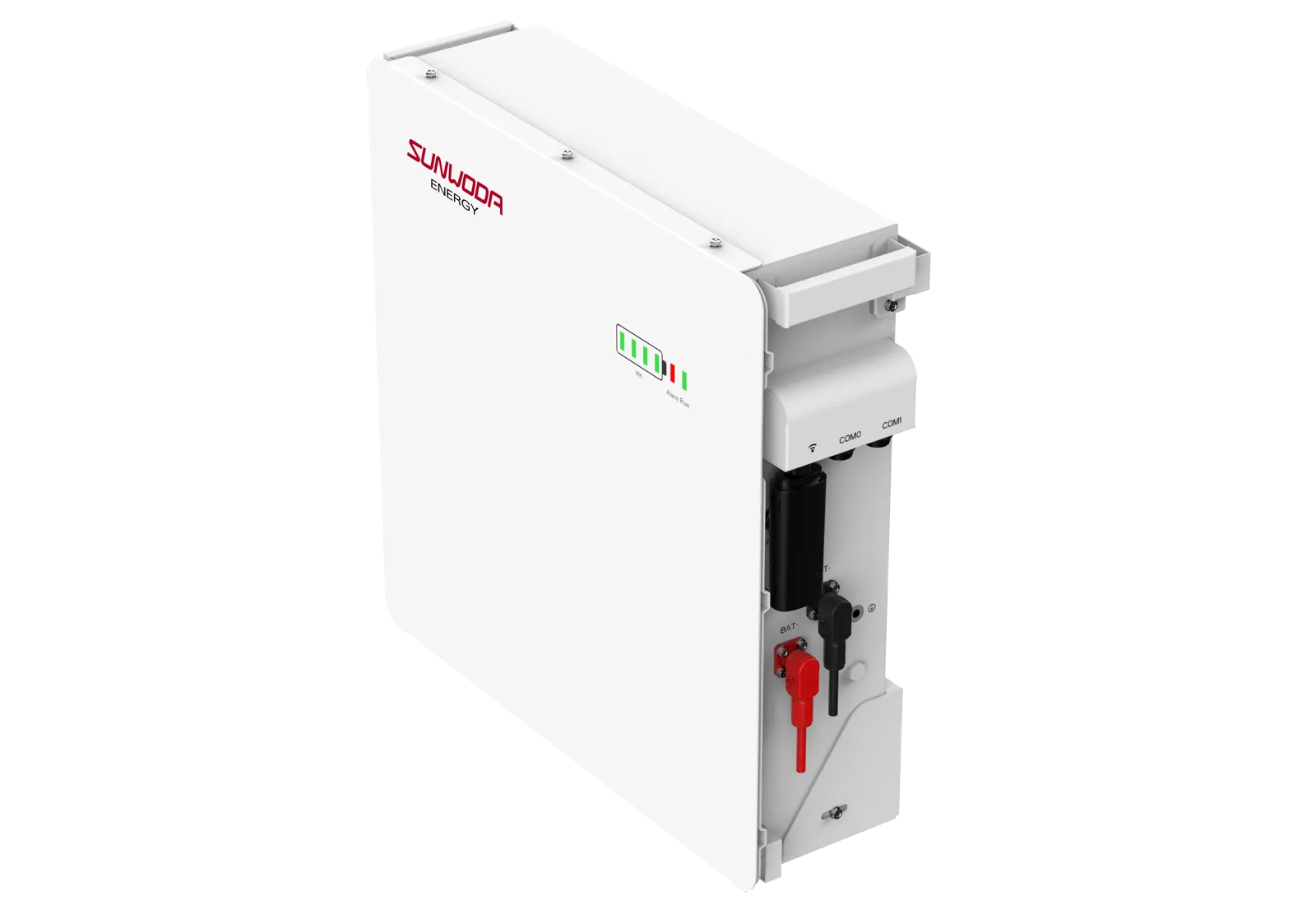

Designed
to fit the wall.
Indoor or Outdoor
Flexible placement
Wall-mounted
Space-saving installation
Built-in Heater
Supports operation in
low temperatures
low temperatures
Quick DC Connection
Easy plug-and-unplug terminals
Dimensions (W×H×D)
544 × 524 × 162mm
Weight
55kg
Safe. Certified. Reliable.
IEC62619
Certified
CE
Compliant
UN38.3
Certified
IP65
Protected against
dust and water
dust and water
Operating Temperature
-20°C to 50°C (Discharge)
-10°C to 50°C (Charge)
-10°C to 50°C (Charge)
Technical specs at a glance
Specification
Value
Nominal / Usable Energy
5kWh / 5kWh at 100% DOD
Rated Voltage
51.2V
Rated Charge/Discharge Current
50A / 50A
Max Charge/Discharge Current
100A / 100A
Roundtrip Efficiency
>98%
Scalability
Max. 16 units, up to 80kWh
Communication
CAN 2.0 / RS485
Wi-Fi
Built-in
Installation
Wall-mounted, indoor or outdoor
Protection Rating
IP65
7-Year Warranty
6+1 years with internet connection
Expert Support
When you need it
Quality Assured
Built to the highest standards
Ready when you are
Power your space.
Your way.
Compact storage. Reliable performance. Monawall is built to keep your energy ready indoors or outdoors.
