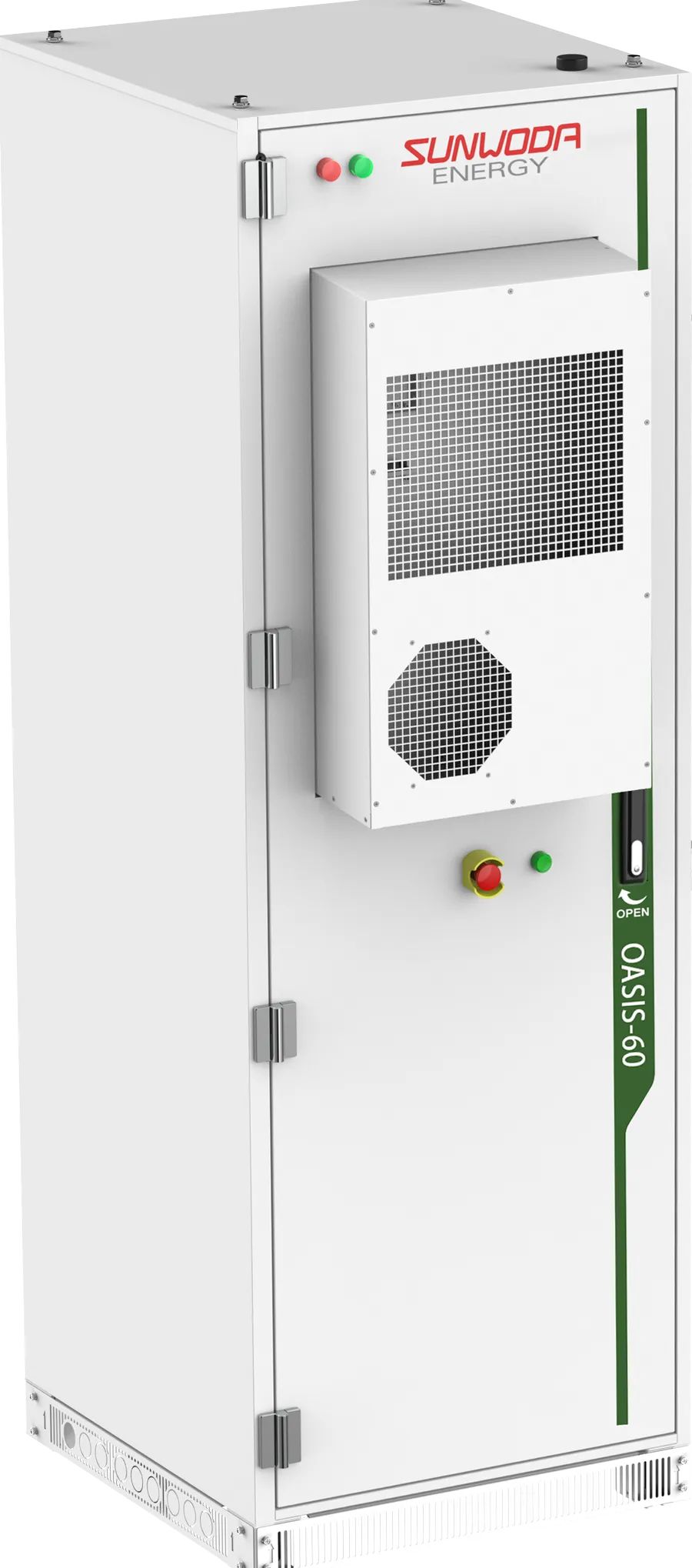

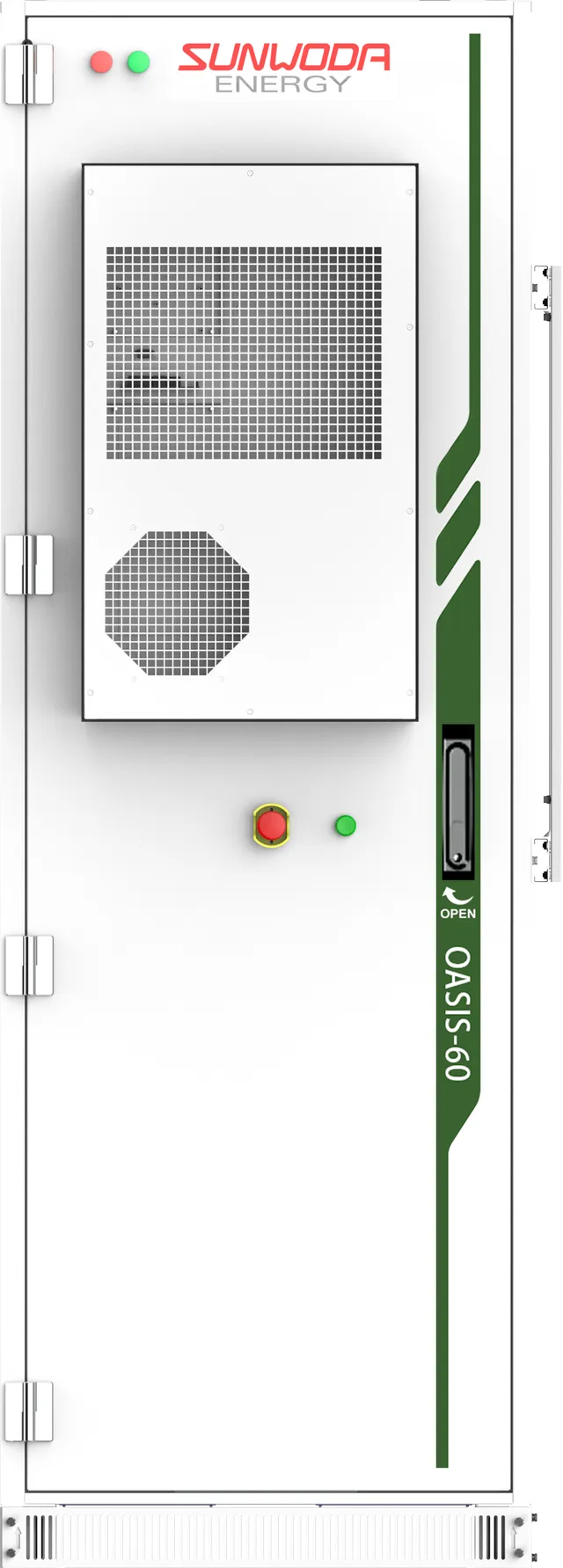

Oasis 60
HV 60kWh · Air-Cooled · IP55
Built for demanding business environments.
A 60kWh commercial battery cabinet designed for reliable outdoor use, safer operation, and easy expansion as your energy needs grow.
Get the Highlights
60kWh
Storage
Storage
Ready in one
cabinet
cabinet
Up to
360kWh
360kWh
Connect up to 6
cabinets
cabinets
~16 Years
Daily Cycling
Daily Cycling
6,000 life cycles
Fast Power
Response
Response
Handles sudden
increases in demand
increases in demand
Built-in
Safety
Safety
Detection and fire
suppression included
suppression included
60kWh.
Ready in one system.
Oasis 60 combines 12 battery packs into a single high-voltage cabinet, delivering 60kWh of rated energy for commercial and industrial applications.
kWh
Start with 60kWh.
Scale up to 360kWh.

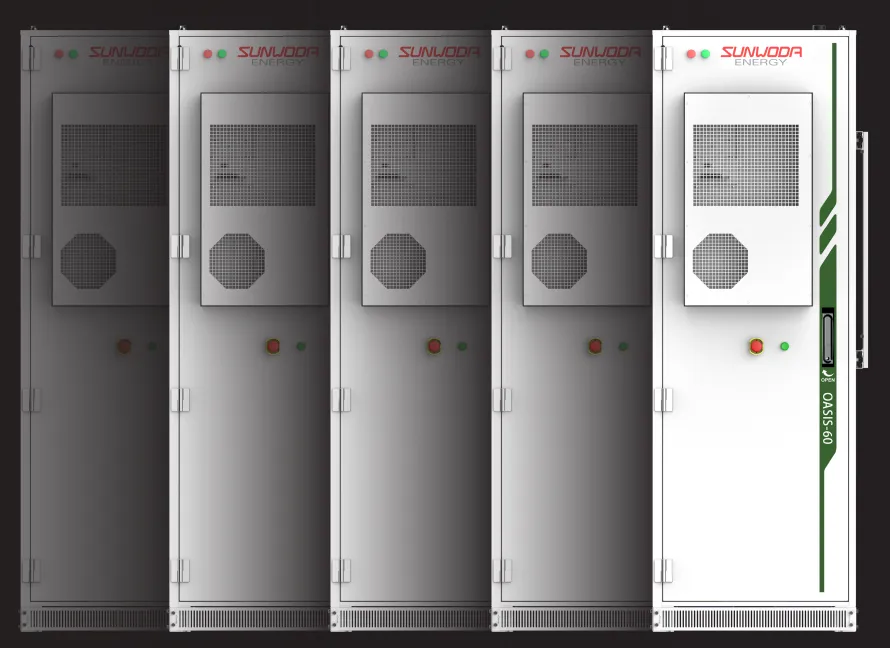

Begin with one Oasis 60kWh cabinet, then connect up to six cabinets as your business energy needs grow.
Up to 6 Cabinets connected together
Up to 360kWh total energy storage
Easy expansion as your business grows
Performance that keeps
business moving.
Fast Power Response
Handles sudden increases in demand.
1C Maximum
60kWh in One Cabinet
Plenty of storage in a single system.
60kWh Rated Energy
Built for Commercial Power
High-voltage performance for larger setups.
614.4V System Voltage
Built for years of everyday use.
~16
Years
of Daily Cycling
With 6,000 cycles, Oasis 60 is designed for dependable daily use year after year.
Day 1
Ready for everyday use.
Around 8 Years*
About 3,000 daily cycles.
Around 16 Years*
Nearly 6,000 daily cycles.
Smart & Connected
Your system,
always visible.
Oasis 60 supports system communication and remote monitoring through multiple connection interfaces.
Live Monitoring
See what's happening
App & Web Access
Check from anywhere
Built-in Wi-Fi
Stay connected easily
Designed to
simplify deployment.
Outdoor Installation
IP55-rated enclosure
Pre-assembled Cabinet
Integrated system design
Air-Conditioned Cooling
Low-maintenance cooling
Prewired System
Internal connections prepared
Dimensions (W×H×D)
715 × 890 × 2140mm
Weight
807kg
Safe. Certified. Reliable.
IEC62619
Certified
CE
Compliant
UN38.3
Certified
IP55
Protected outdoor
enclosure
enclosure
IEC 62477
Safety requirements for
power-conversion systems
power-conversion systems
Technical specs at a glance
Specification
Value
Model
CIESS 60
Rated Energy
60kWh
Battery Packs
12
Rated Voltage
614.4V
Voltage Range
537.6–691.2V
Maximum C-rate
1C
Scalability
Up to 6 cabinets, 360kWh
Communication
CAN / RS485 / Wi-Fi
Cooling
Air-conditioning
Protection Rating
IP55
5-Year Warranty
subject to Luminey's published terms and conditions
Expert Support
When you need it
Quality Assured
Built to the highest standards
Ready for reliable energy
Keep your operation prepared.
Outdoor protection. Integrated safety. Scalable capacity. Oasis 60 is built for demanding commercial environments.
