Oasis Flex
HV 25–60kWh · IP20
Flexible power. Built for business.
A flexible commercial battery system built for dependable everyday energy storage, with capacity that grows as your operation grows.
Get the Highlights
8 Capacity
Options
Options
Choose the right size
for your business
for your business
Up to
360kWh
360kWh
Expand as your
operation grows
operation grows
~16 Years
Daily Cycling
Daily Cycling
6,000 life cycles
Fast Power
Response
Response
Handles sudden
increases in demand
increases in demand
Remote
Monitoring
Monitoring
Check your system
from anywhere
from anywhere
Eight capacities.
One flexible platform.
Oasis Flex is available in eight configurations, helping businesses select the storage capacity that fits their site, load and future expansion plans.
kWh
Start with 25.

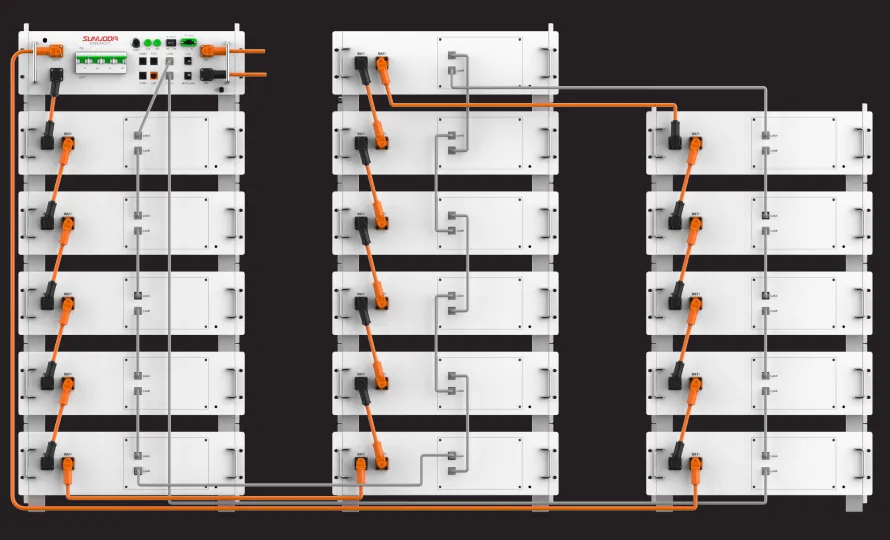

Scale up to 360.
Choose the capacity your business needs today, then expand your storage as demand grows, up to 360kWh.
Multiple starting configurations
Modular system expansion
Up to 360kWh total capacity
Performance that keeps
business moving.
Everyday Performance
Built for reliable day-to-day energy use.
0.5C Rated
Fast Power Response
Handles sudden increases in demand.
1C Maximum
Built for Larger Systems
Supports high-voltage commercial setups.
614.4V Rated System
Built for years of everyday use.
~16
Years
of Daily Cycling
With 6,000 cycles, Oasis Flex is designed for dependable daily use year after year.
Day 1
Ready for everyday use.
Around 8 Years*
About 3,000 daily cycles.
Around 16 Years*
Nearly 6,000 daily cycles.
Smart & Connected
Your system,
always in view.
Oasis Flex supports remote system communication and monitoring through multiple wired and wireless interfaces.
Live Monitoring
See what's happening
App & Web Access
Check from anywhere
Built-in Wi-Fi
Stay connected easily
Designed for
modular installation.
Indoor Installation
Commercial environments

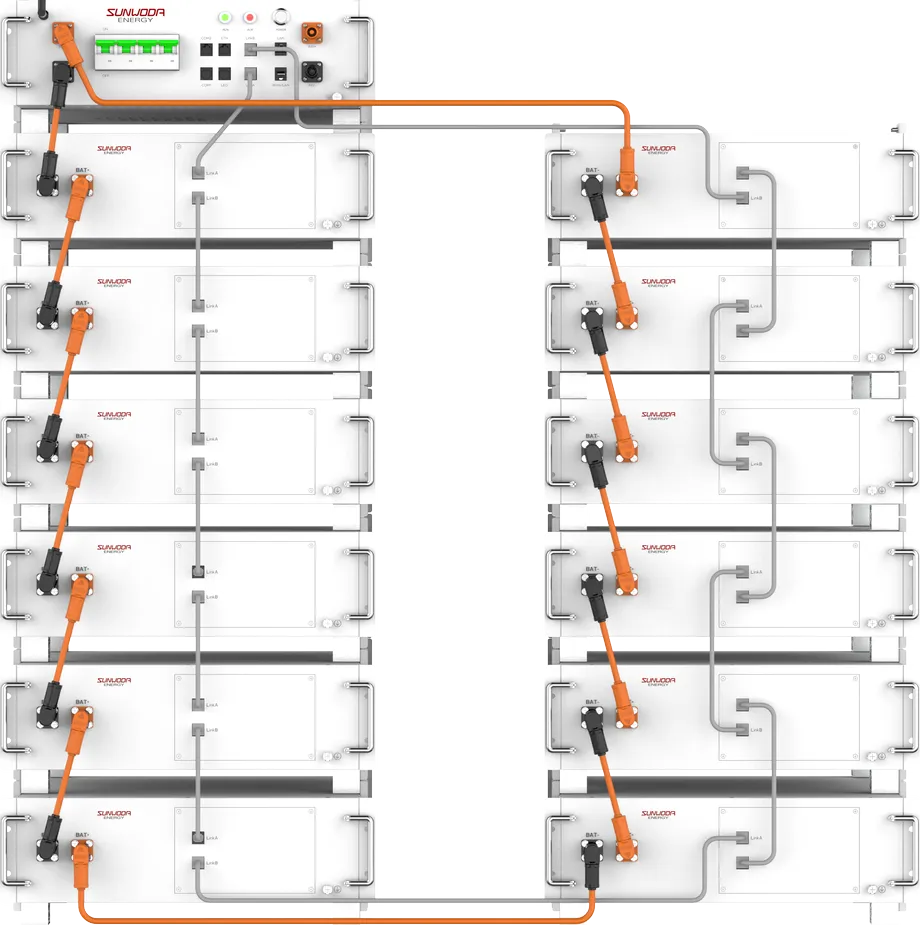

Modular Battery Racks
Easy Configuration
Natural Cooling
Low-maintenance cooling
Pre-arranged Communication
CAN, RS485, Wi-Fi and Ethernet
Model
Dimensions (W×H×D)
25kWh
480 × 410 × 1040mm
30kWh
480 × 410 × 1210mm
35kWh
1180 × 410 × 700mm
40kWh
1180 × 410 × 870mm
45kWh
1180 × 410 × 870mm
50kWh
1180 × 410 × 1040mm
55kWh
1180 × 410 × 1040mm
60kWh
1180 × 410 × 1210mm
Weight
248kg to 570kg, depending on configuration.
Safe. Certified. Reliable.
IEC62619
Certified
CE
Compliant
UN38.3
Certified
IP20
Designed for indoor
installation
installation
Protection
features
features
Short-circuit protection
Overcurrent etc
Overcurrent etc
Technical specs at a glance
Specification
Value
Available Capacities
25, 30, 35, 40, 45, 50, 55 and 60kWh
Rated Voltage Range
256V to 614.4V
Rated Charge/Discharge Rate
0.5C
Maximum Charge/Discharge Rate
1C
Scalability
Up to 360kWh
Communication
CAN / RS485 / Wi-Fi / Ethernet
Installation
Indoor
Protection Rating
IP20
Cooling
Natural cooling
Certifications
IEC 62619 / CE / UN38.3
5-Year Warranty
subject to Luminey's published terms and conditions
Expert Support
When you need it
Quality Assured
Built to the highest standards
Ready to scale
Build the energy system your business needs.
Flexible configurations. Connected control. Oasis Flex is designed to grow with your operation.
Get a Quote
Get a Quote
