LiFePO4 Solar Battery Guide

Choosing the right LiFePO4 solar battery can feel confusing, especially when labels such as 48V, 51.2V, 100Ah and 5.12kWh appear together. In simple terms, a 51.2V 100Ah battery stores 5.12kWh of energy and can provide about 4.1kWh of usable household electricity after allowing for losses and reserve.

That could power a 500W combination of lights, fans, a refrigerator, Wi-Fi and a television for roughly eight hours.

This guide explains what a 48V 100Ah LiFePO4 battery can run, how long backup may last, how many solar panels are needed for charging and what buyers should check before purchasing.

 It also covers BMS limits, inverter compatibility, safety and current LiFePO4 battery prices in Pakistan, using clear, practical language for homeowners and families.

Underatanding 48V LiFePO4 Battery 100Ah Facts at a Glance

What does a 51.2V 100Ah Battery Mean?

Think of lithium ion battery​ energy as water in a tank:

kWh is the tank size. It tells you how much energy is stored.

kW is the tap size. It tells you how much power can be supplied at one time.

Ah is only part of the capacity. Voltage and Ah must be used together.

Use this formula:

Battery energy = voltage x amp-hours / 1,000

For a 51.2V 100Ah battery:

51.2 x 100 / 1,000 = 5.12kWh

A simple 80% planning factor leaves about:

5.12kWh x 0.80 = 4.10kWh of usable AC energy

In everyday terms, 4.1kWh can run a steady 1,000W load for about 4.1 hours. Real backup time changes with appliance cycling, startup surges, battery temperature, age and inverter efficiency.

What Appliances can a 48V 100Ah Battery Run?

The following examples use 4.1kWh of planned usable energy from one 51.2V 100Ah battery.

These are planning estimates, not guarantees. The most accurate method is to check the actual watts shown by an inverter monitor or plug-in energy meter.

Common Appliance Examples

Fans, LED lights, router, TV and laptops: Usually suitable for a 5.12kWh battery.

Refrigerator: Usually suitable, but the compressor briefly needs extra startup power.

Inverter air conditioner: Possible when the inverter and battery BMS support the load. If the AC averages 100Ah Lithium Battery, the battery alone may provide about four hours with other loads switched off.

Iron, kettle or water heater: These appliances can use 1,000W to 2,500W each, so they reduce backup time quickly.

Water pump or washing machine: Possible only after checking motor startup power and the inverter surge rating.

Energy Capacity and Load Capacity are Different

A lithium ion battery​ may store enough energy for several hours but still switch off if too many appliances start together.

For example, a 51.2V battery with a 100A continuous BMS can provide about 5.12kW of DC power at nominal voltage. Actual AC output is lower. Near a low battery voltage, a 5kW inverter can require about 124A, which exceeds many 100A battery limits.

The safe maximum load is set by the lowest-rated part of the system, including the BMS, inverter, cables, fuses, connectors and busbars.

How to Choose the Right Lithium ion Battery​ Size

• List essential appliances. Record the watts and expected daily hours for each item.
• Calculate required energy. Multiply watts by hours, then add the results.
• Allow for losses and reserve. Divide the required AC energy by 0.80 for an early estimate.
• Check startup power. Refrigerators, pumps and air conditioners may briefly draw much more than their normal running power.‍
• Confirm compatibility. Match the battery voltage, BMS current, inverter firmware and CAN or RS485 communication.

Simple Home Example

3.24kWh / 0.80 = 4.05kWh minimum nameplate capacity

A 5.12kWh battery provides useful headroom for this example.

How many Solar Panels Charge a 48V 100Ah Battery?

Replacing 5.12kWh in five peak-sun hours at 85% charging efficiency requires about 1.2kW of effective solar capacity:

5.12kWh / 5 hours / 0.85 = 1.20kW

By energy alone, that is roughly:

• Three 450W panels, providing 1.35kW
• Three 550W panels, providing 1.65kW
• Two 600W panels, providing 1.20kW

LiFePO4 Battery Price in Pakistan

A 48V or 51.2V 100Ah LiFePO4 battery was listed at about PKR 190,000 to 310,000 in Pakistan on 21 July 2026, before installation.

The final cost can change with:

• Battery brand and cell quality
• BMS charge and discharge limits
• Warranty terms and local support
• Indoor or weather-resistant enclosure
• Inverter communication and compatibility
• Delivery, cables, fuses, isolator, rack and installation

Compare batteries by kWh, usable capacity, BMS rating and warranty, not by Ah or advertised price alone.

Can two 48V 100Ah Batteries be Connected Together?

Two compatible 51.2V 100Ah batteries connected in parallel create a 51.2V 200Ah bank storing 10.24kWh. Using the same 80% planning factor, that provides about 8.2kWh of usable AC energy.

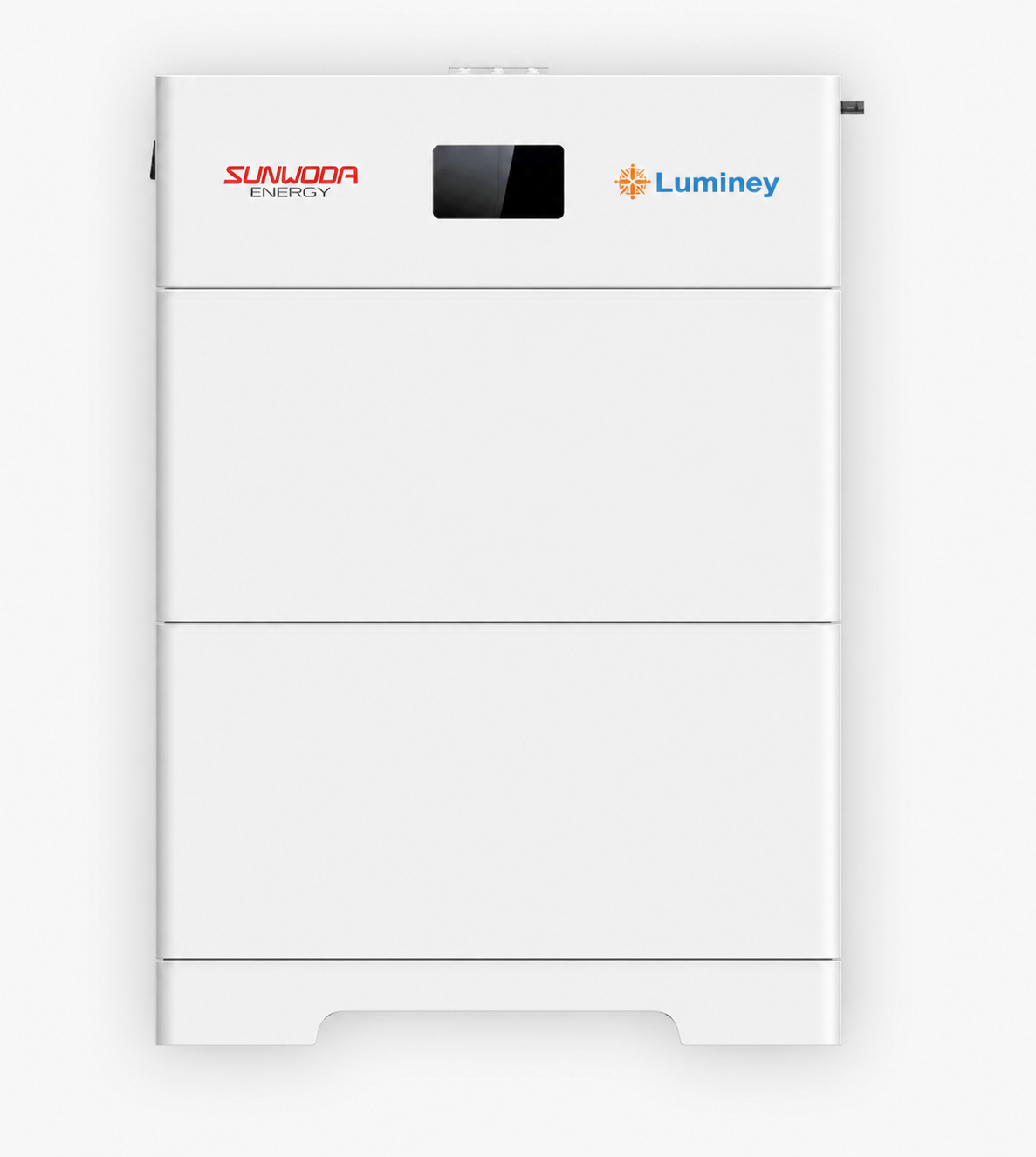

Which Luminey LiFePO4 Battery Is Right for Your Home?

Luminey’s residential energy-storage range includes Atrix, Monawall and SunESS H.

Atrix supports modular expansion, Monawall prioritizes IP65 protection, and SunESS H provides high-voltage LiFePO4 storage in four capacity options.

The right battery depends on your required backup time, appliance load, installation location and inverter compatibility.

How should Homeowners choose between Atrix, Monawall and SunESS H?

Choose Atrix when modular expansion is the priority, Monawall when IP65 protection and built-in Wi-Fi matter, and SunESS H for a high-voltage system with defined capacity options. Confirm the exact inverter, firmware and communication compatibility before purchase.

Published features are useful for comparison, but they do not replace professional battery sizing. Ask Luminey to confirm the current datasheet, usable capacity, warranty, installation limits and approved inverter compatibility for your selected model.

Explore Luminey’s LiFePO4 battery and solar-storage products or request a system compatibility check before choosing a battery.

Safety and Buying Checklist for Lithium Battery in Pakistan​

Before buying a LiFePO4 solar battery:

• Confirm the exact battery and inverter models are compatible.
• Check continuous and peak BMS current, not only capacity.
• Read the full warranty, including cycle, throughput and retained-capacity terms.
• Include cables, fuses, isolators and installation in the total price.
• Install indoor-rated batteries away from rain, flooding, direct sun and excessive heat.
• Never bypass the BMS or use unapproved charging settings.
• Use a qualified solar installer for cable sizing, protection and commissioning.

Frequently Asked Questions

Get a battery sizing check from Luminey

For a practical recommendation, share your inverter model, essential appliances, measured watts, required backup hours, existing solar panel capacity, installation location and city with Luminey.
